Informations complémentaires
| MATÉRIAU | ALUMINIUM |
|---|---|
| COULEURS DISPONIBLES | BLANC |
| DIAMÈTRE CENTRAL | 100 MM |
Description

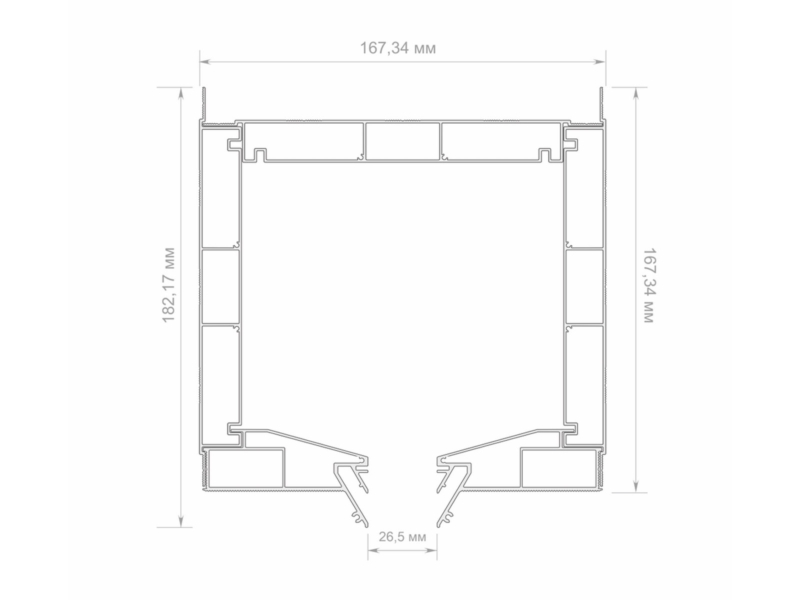

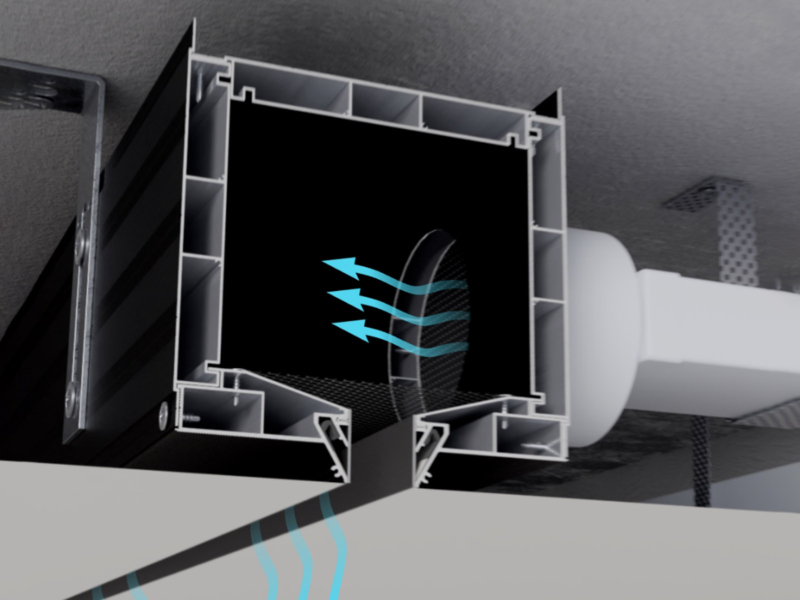

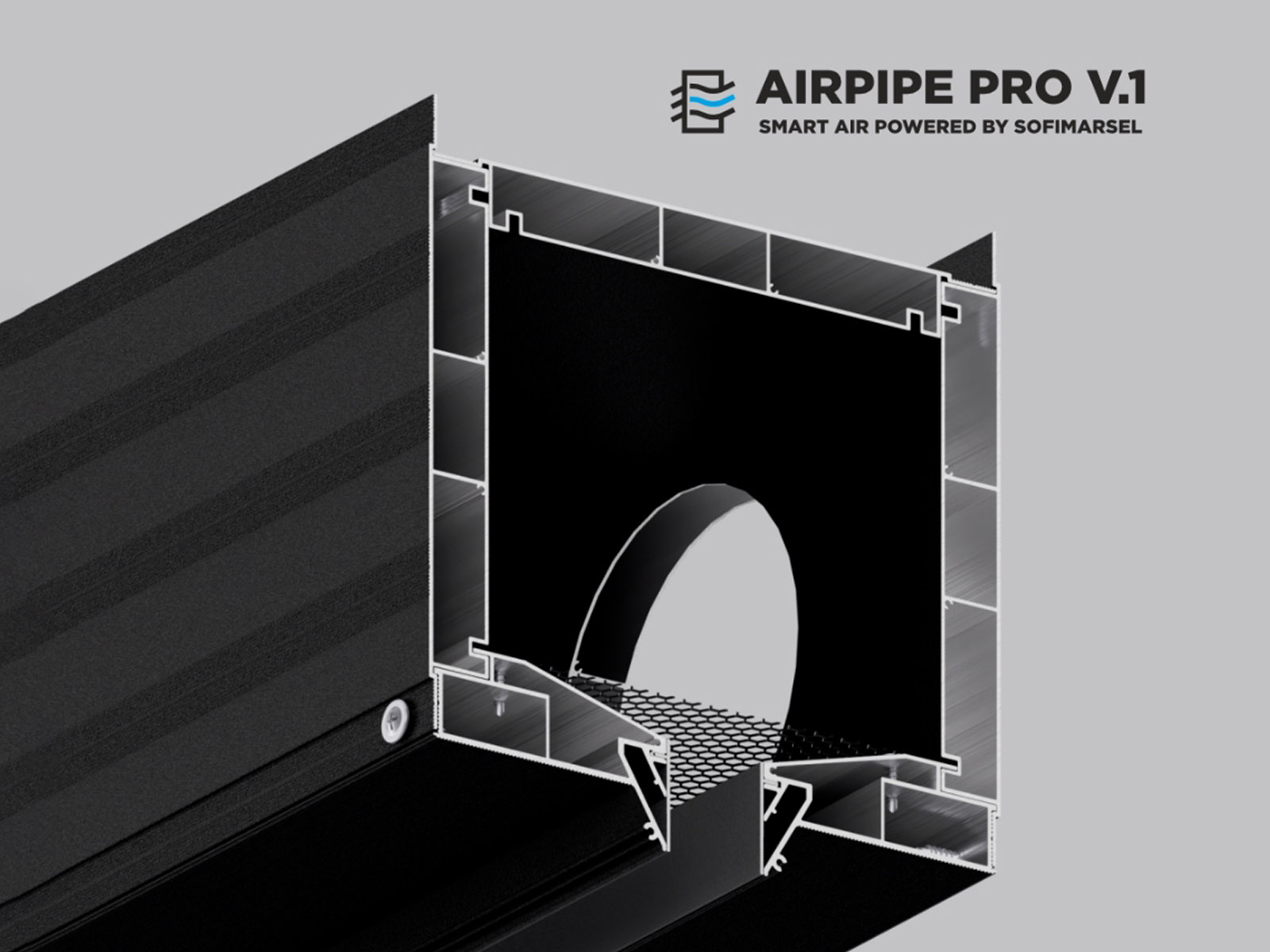

The Airpipe product is a combination of two aluminum profiles 10-1 Airpipe base and 10-2 Airpipe wing combined into a single structure

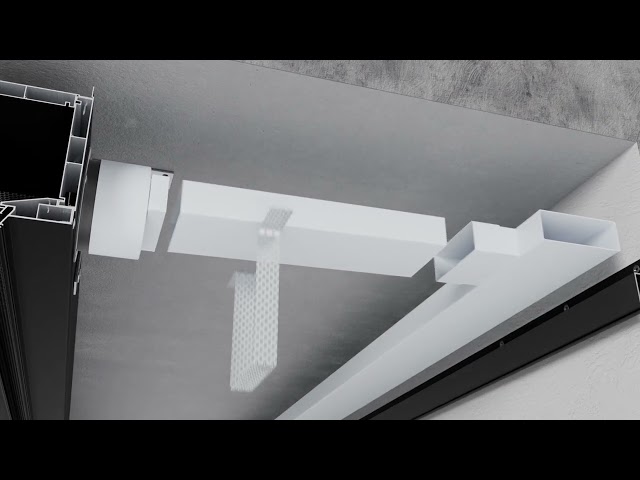

to create a static chamber behind stretch ceiling sheet. Airpipe can be connected to almost any of the existing ventilation and
air conditioning systems. It is also possible to avoid all external fan units, as all components remain behind stretch ceiling,
that makes the interior minimalistic and not overload it with additional devices and units.
On the ceiling itself we get a linear recess 26 mm wide in black colour. Its geometry can be designed depending on the ventilation
tasks of a particular room and distribute air flows in accordance with the way it was designed by the architect.
The deflector grille located inside the recess is also in black Moire colour, that emphasizes the aesthetic component of static chamber.
All that can be seen is a strict black line and nothing more.
The harpoon slot is covered with 07-0 aluminum masking cover the same way as in all SofiMarsel profile systems of a similar solution.
The Airpipe recess is compatible with 07-5 Magnetic Adapter profile and SofMarsel TRM magnetic track lighting system.
